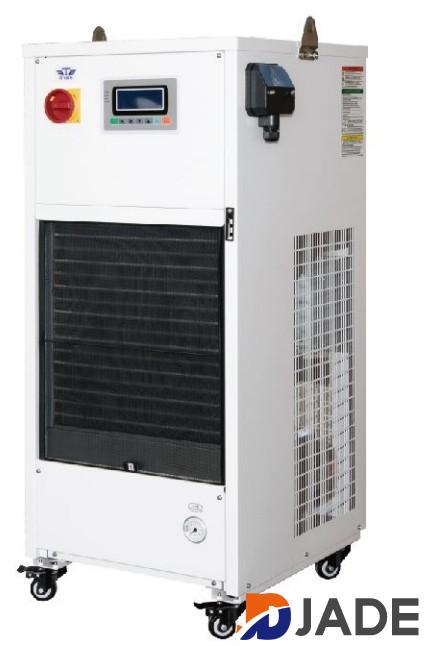

MCW / Inverter Water Chiller

MCW / Inverter Water Chiller

Tongfei brand

.1 Introduction

.1 Application

• Nanoscale internal and external cylindrical grinding machine, ultra precise jig grinder, ultra-precise vertical/horizontal machining center and other mechanical precision machining machine tools.

• Deep-processing machine tools for non-ferrous metals.

• Special machine tools, like ultra-precise EDM and wire cutting machine.

• Industries needing high-precision temperature control.

2. Functions and Features

• Compared with ordinary water chillers, power consumption can be saved by 10%-20%.

• An inverter compressor is used to realize continuous adjustment of rotating speed within limits and change output. Along with self-developed software, the solenoid valve featuring wide regulating range and quick reaction can reduce temperature fluctuation. As a result, control accuracy reaches +0.1C and machining precision is greatly improved.

• Low starting current can avoid great impact on power grid.

• With a higher cooling performance, eco-friendly refrigerant R410A wil

not destroy ozone. The working pressure is 1.6 times as high as R22.

• Have the functions of water chiller, such as control and alarm.

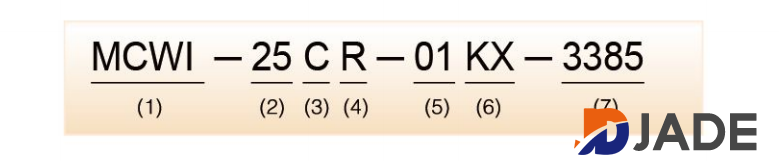

3. Model Description

MCWI - 25 C R - 01 KX - 3385

(1) Product series:

MCWI: Inverter water chiller

(2) Cooling capacity: (×100W)

25: Cooling capacity = 25×100W=2500W

(3) Structure:

A: Without pump or tank

B: With a pump but without tank C: With a pump and tank

D: With a tank and two pumps

(4) Additional functions:

R: With heating function (Without heating function, there is no "R".)

(5) Design serial number: there is a need for modification in case of great structural changes

01: General serial number

(6) Special requirements: Be omitted for no special requirements K: Special requirements for interface

X: Special requirements for pump

(7) Power supply:

The first digit: phase

The second/third digits: the first two figures of voltage The forth digit: frequency

3385: 3/PE AC 380V 50Hz

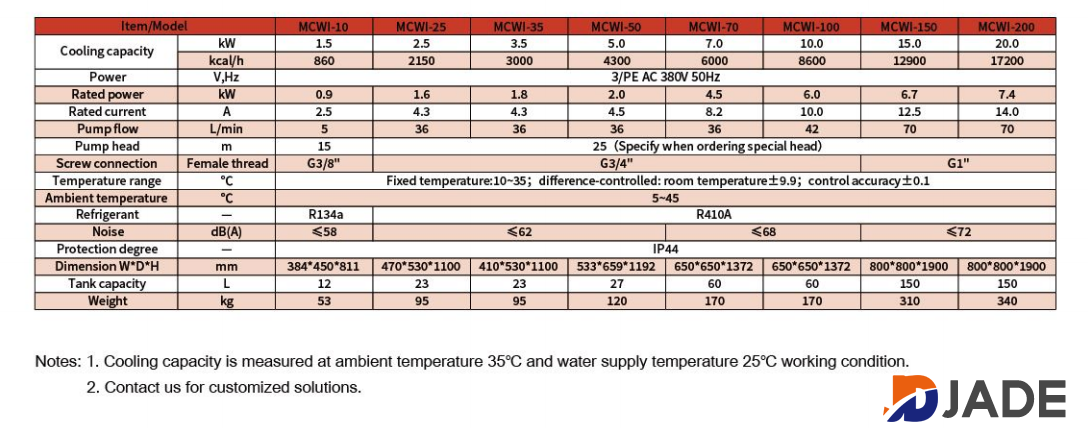

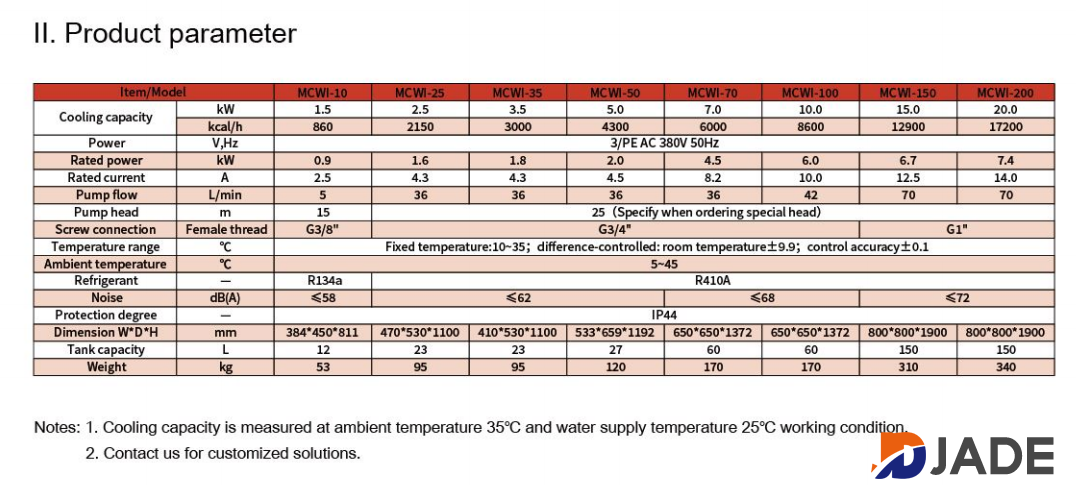

tem/Model

MCWI-10

MCWI-25 MC
