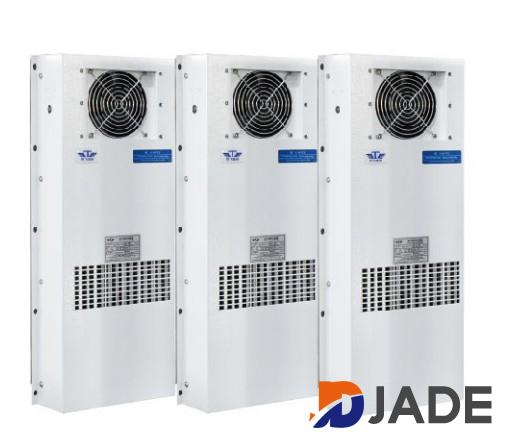

I Introduction

.1 Application

• Electric control cabinets of CNC machine tools.

• Power supply cabinets of CNC electromachining systems.

• Communication equipment.

• SPC exchange.

• Measuring instruments.

2. Functions and Features

• Two separate air circulation systems can effectively prevent dust, oil mist, moisture and corrosive gases from entering the enclosure, hence minimizing the downtime.

• With a thermal conduction technology featuring forced convection, this heat exchanger can raise heat transfer efficiency by 20~30% via shorter path and greater air duct surface.

• Working temperature is higher than the dew point, no condensation, with a good ability to adapt to the environment; Compact design, featuring ultra-thin housing and electrostatic spraying, applies to multiple industries.

• Application requirements for mechanical and electrical equipment

• There are two installation methods, including extemal and internal mounted,

available for your choice.

3. Model Description

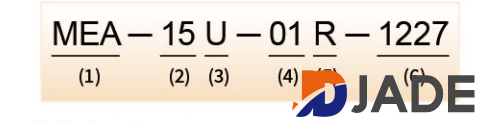

MEA- 15U- 01R- 1227

(1) Product series:

MEA: Air/Air heat exchanger

(2) Power:

15: The maximum cooling coefficient is 15 W/°C

(3) Structure:

U: External-mounted N: Internal-mounted

(4) Design serial number: there is a need for modification in case

of great structural changes 01: General serial number

(5) Special requirements: Be omitted for no special requirements R: Special requirements for power supply wiring

(6) Power supply:

The first digit: phase

The second/third digits: the first two figures of voltage The forth digit: frequency

127: P1/E CA20V50Hz

1/PE AC 220V 60Hz
