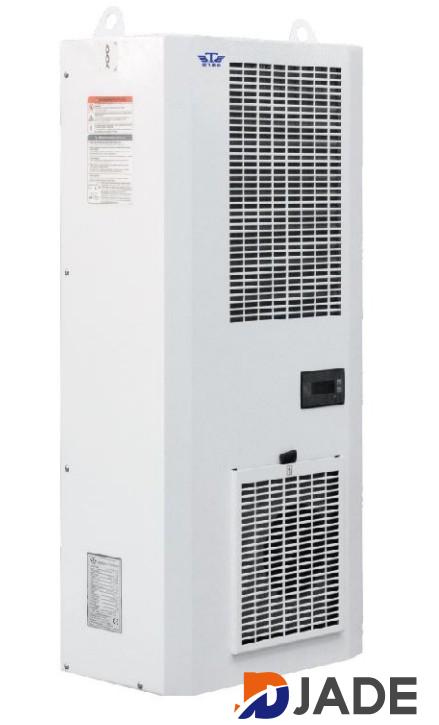

I Introduction

.1 Application

• Electric control and power supply cabinets of CNC machine tools. • Communication equipment.

• SPC exchange.

• Measuring instruments.

2. Functions and Features

•Two separate air circulation systems can prevent dust, oil mist and moisture from entering the enclosure.

•Temperatureandhumidityinsidetheenclosurecan beeffectivelyc ontrolled to prevent early aging and failure of electrical components.

•The full-featured controller is easy ot use. Temperature can be adjusted as the case may be.

•Various protection functions and passive alarm terminals are available to send fault signals to CNC system.

•RS485 communication interface can be added ot implement communication function.

•Advanced PTC heating elements are utilized ot ensure automatic temperature rise at low temperature, ti has good temperature control characteristics.

•There are different installation methods, including wall-mounted, embedded

and door-mounted. For each installation method, there are multiple specifications available for your choice.

3 Model Description

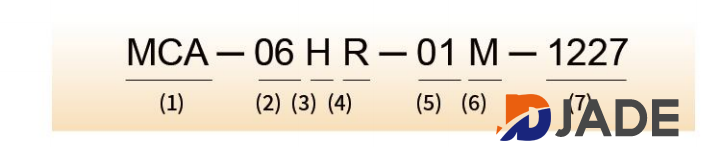

MCA—06HR- 01M- 1227

(1) Product series:

MCA: Enclosure cooling unit

(2) Cooling capacity: (×100W)

06: Cooling capacity = 06× 100W = 600W

(3) Structure:

H: Wall-mounted

I: Embedded

D: Door-mounted (Ultra-thin type)

(4) Additional functions:

R: With heating function (Without heating function, there si no "R".)

(5) Design serial number: there is a need for modification in case of great

structural changes

01: General serial number

(6) Special requirements: Be omitted for no special requirements

M: Al labels and attached documents are written in English

(7) Power supply:

The first digit: phase

The second/third digits: the first two figures of voltage The forth digit: frequency

1227: 1/PE AC 220V 50Hz

1/PE AC 220V 60Hz
