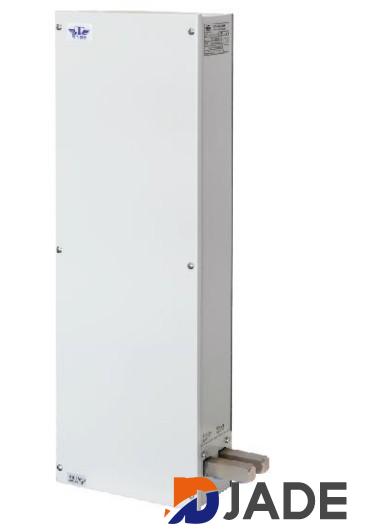

MWA / Air/Water Heat Exchanger

MWA  /  Air/Water Heat Exchanger

Tongfei brand

I. Introduction

1. Application

• Electric control and power supply cabinets of CNC machine tools.

• Communication equipment.

• SPC exchange.

• Measuring instruments.

2. Functions and Features

• Two separate air circulation systems can effectively prevent dust, oil mist and moisture from entering the enclosure.

• Water-in temperature can be adjusted ot control temperature and humidity inside the enclosure, hence protecting electrical components.

• Compact design makes it easy to install and maintain.

• With special materials and treatments, special components are corrosion

resistant and tightly sealed.

• Reliableandsmoothrunningwithlessnoiseandgreaterenergyeficiency. • VH electrostatic powder coating si adopted ot antistatic and make hte heat

exchanger delicate in appearance.

•Eco-friendly (without refrigerant) and energy-saving.

• There are diferent instalation methods, including wal-mounted, roof-mounted and bottom-mounted. For each installation method, there are multiple specifications available for your choice.

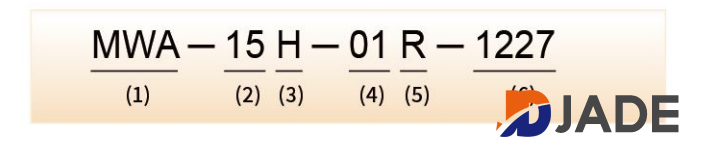

3. Model Description

MWA - 1 5 H - 01 R - 1 2 2 7

(1) Product series:

MWA: Air/Water heat exchanger

(2) Power: (×100W)

15: The maximum cooling capacity = 15×100W = 150 W

(3) Structure:

H: Wall-mounted (External) C: Roof-mounted

N: Botom mounted

(4) Design serial number: there is a need for modification ni case of great structural changes

01: General serial number

(5) Special requirements: Be omitted for no special requirements R: Special requirements for power supply wiring

(6) Power supply:

The first digit: phase

The second/third digits: the first two figures of voltage

The forth digit: frequency

1227: 1/PE AC 220V 50Hz

1/PE AC 20V 60Hz
