MCW / Water Chiler

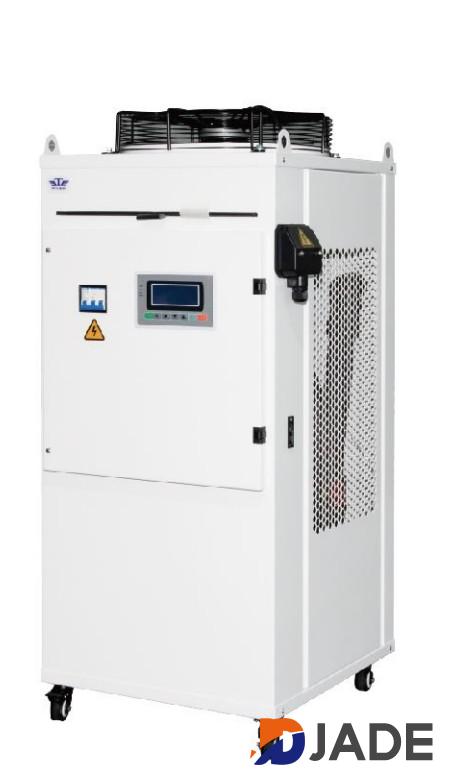

MCW Water Chiler

Tongfei brand

.I Introduction

1 . Application

•High-speed motorized spindle of machining center and water-cooled servo motor.

•CNC linear cutting machine, multi-linear cutting machine.

•CNC engraving machine and high-speed engraving-milling machine.

•Torque/Linear motors of CNC machine tools.

•PCB drilling and edge milling machine.

•Garment, food and plastics machinery; mould cooling; quenching machine and its wielding equipment.

• Equipment and experimental apparatus of semiconductor manufacturing and optical industry.

2. Functions a n d Features

• HV electrostatic powder coating si adopted ot make the chiler delicate ni appearance and durable in use. Unique physical design creates compact structure and reliable performance.

• Al components are brands from domestic and abroad, thereby ensuring quality, safety and reliability.

• The control system adopts a controller with Chinese/English (switchable) LCD, making ti visualized and easy to operate. Two control modes, including fixed temperature and difference-controlled temperature, are available for your choice.

• The controller featuring automatic fault diagnosis can display fault points

on the screen, hence reminding the user of rapid processing. Fault signals are sent to CNC system to avoid causing damage to the machine tool and processing parts.

• It serves multiple protect functions with passive alarm and remote control terminals,making it easy to realize integral control and monitoring of CNC system. Furthermore, RS485 communication function can be provided to ensure CNC machine tool safety and prolong service life.

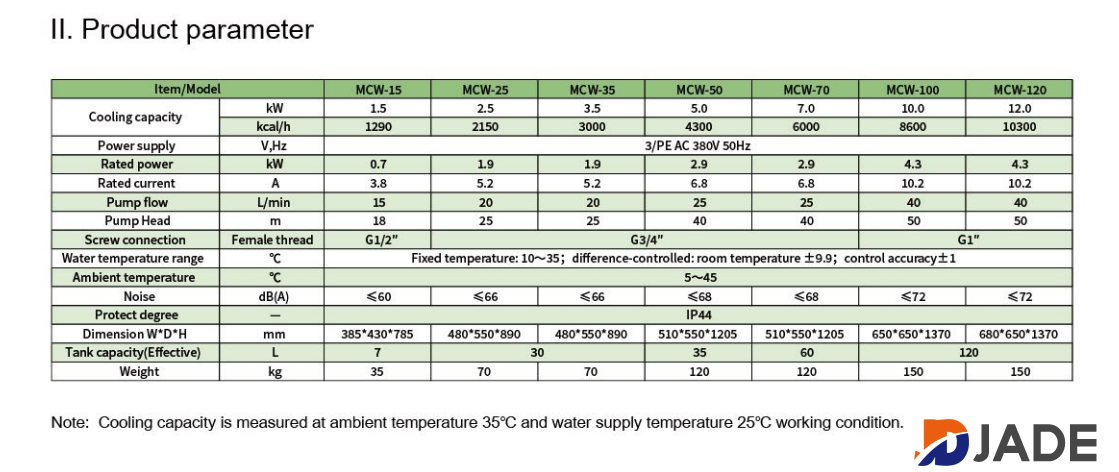

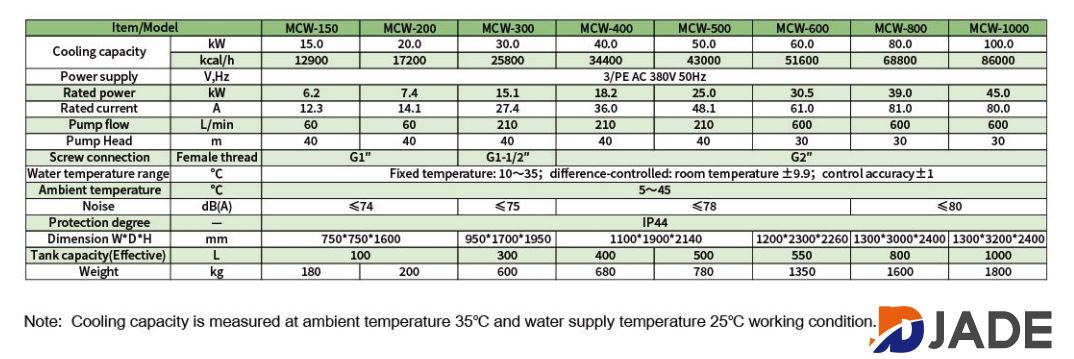

3 . Model Description

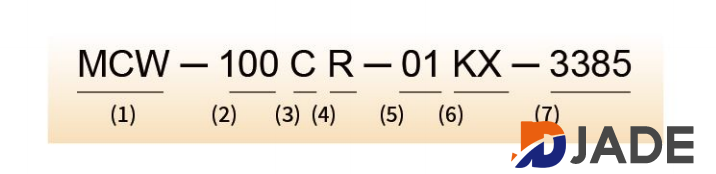

MCW - 100 C R - 01 KX - 3385

(1) Product series: MCW: Water chiller

(2) Cooling capacity: (× 100W)

100: Cooling capacity = 100× 100W = 10000W|

(3) Structure:

A: Without pump or tank

B: With a pump but without tank C: With a pump and tank

D: With a tank and two pumps

(4) Additional functions:

R: With heating function (Without heating function, there is no "R".)

(5) Design serial number: there is a need for modification in case of great structural changes

01: General serial number

(6) Special requirements: Be omitted for no special requirements K: Special requirements for interface

X: Special requirements for water supply pump

(7) Power supply:

The first digit: phase

The second/third digits: the first two figures of voltage The forth digit: frequency

3385: 3/PE AC 380V 50Hz
