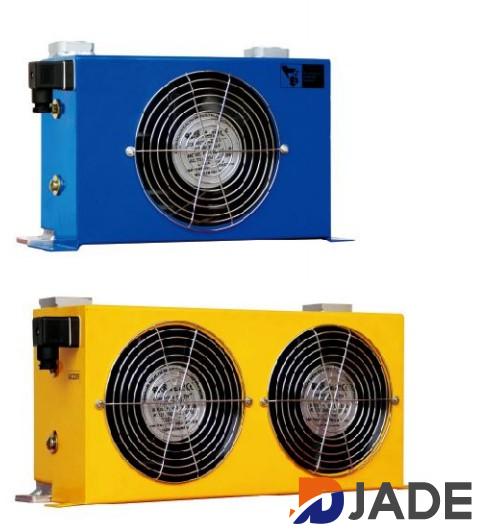

MEO / Oil/Air Heat Exchanger

MEO /  Oil/Air Heat Exchanger

Tongfei brand

I Introduction

1 . Application

• Hydraulic pump stations. • Hydraulic systems.

2. Functionsa n dFeatures

• Oil temperature can be controlled ot avoid oil deterioration and oil shock.

• Oil viscosity can be controlled to improve stability of hydraulic systems.

• Compact design contributes ot high heat exchange efficiency and lower power consumption.

• Axial flow fan with less noise and larger air flow dissipates heat quickly.

• Made from high-quality aluminum alloy, finned radiator have such advantages

as compact design, light weight, high heat exchange efficiency and less noise. It is manufactured by vacuum brazing process and has passed the qualification certificate of pressure vessel DI, which is widely recognized in the industry as an environmentally friendly heat transfer alternative product.

3 .Model Description

MEO - 50 B- 03 A- 1225

(1) Product series:

MEO: Air/Oil heat exchanger

(2) Power:50: The maximum cooling coefficient is 50 W/°C

(3) Structure:

B: With circulating pump

(4) Design serial number: there is a need for modification in case of great structural changes

03: Plate-fin type

(5) Special requirements: Be omitted for no special requirements A: Special requirements

(6) Power supply:

The first digit: phase

The second/third digits: the first two figures of voltage

The forth digit: frequency 1225: 1/PE AC 220V 50Hz
