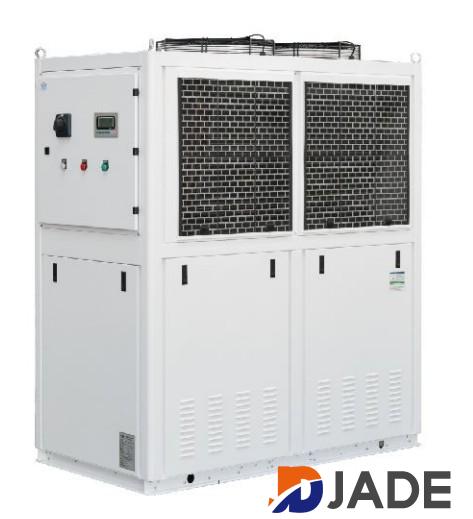

MCWL Water Chiler for Laser

Tongfei brand

I. Introduction

1 . Application

•Carbon dioxide lasers for cladding, welding and cutting.

•Solid-state lasers for marking and 3D printing.

•Semiconductor lasers for cladding, welding and cutting.

• Fiber lasers for cladding, welding and cutting.

2 .Functionsa n dFeatures

•Circulating pump made from stainless steel features large flow, high head, low noise and long service life. Besides, such components as stainless steel water tank, pipeline and cooling valves are free from rust.

•The control system adopts a controller with Chinese/English (switchable) LCD and fully automatic CPU, making it visual and easy-to-operate.

•Remote start terminals are provided ot realize gang control between machine tool and water chiller. RS485 communication interface can be added to

implement communication function.

• tI serves multiple functions with passive alarm and remote control terminals, making ti easy to realize integral control and monitoring of CNC system. • Among them, the "double temperature" water chiler provides stable and real-time water temperature control for the laser at the same time, and provides a water temperature similar to the ambient temperature for lens

cooling, which solves the problem that the lens is damaged by condensation when using low temperature water cooling, and is the best choice for laser equipment cooling.
