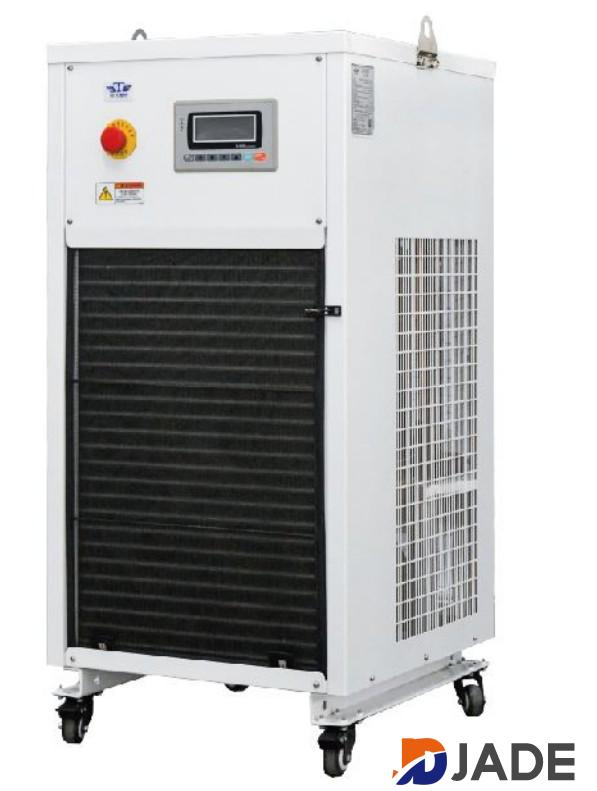

MCO Oil Chiler
.I Introduction
Tongfei brand
1 . Application
• Mechanical or low-speed motorized spindles of CNC machine tools.
• Hydraulic stations or lubrication stations of CNC machine tools, oil
presses and machinery.
• Working fluid cooling for electrical discharge machines.
• Lubricating/coolingsystemofreductionboxes, likeGermanyZF
reduction gearbox, Italy BF reduction gearbox and self-made gearbox.
2 .Functions and dFeatures
• The control system adopts a controller with Chinese/English (switchable) LCD, making ti visual and easy-to-operate.
• Two control modes, including fixed temperature and difference-controlled temperature, are available for your choice.
• tI serves multiple functions with passive alarm terminals, sending fault signals to CNC system.
• Remote start terminals are available for gang control between machine tool and oil chiller.
• RS485 communication interface can be added ot implement communication function.
• To prevent the spindle of CNC machine tool from affecting the machining accuracy due to changes in oil temperature
• To prevent spindle from off-centering or thermal deformation, stabilize the precision and prolong the service life of machine tool.
• To prevent oil deterioration caused by high oil temperature, maintain oil viscosity and avoid oil shock.

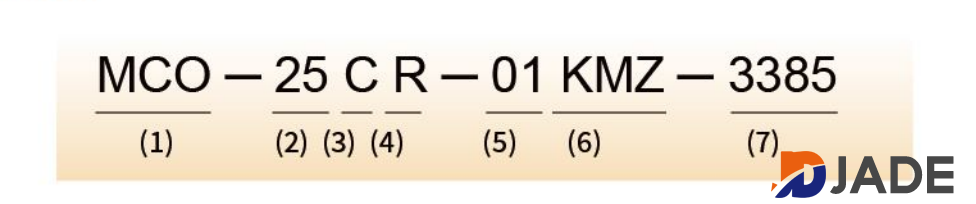

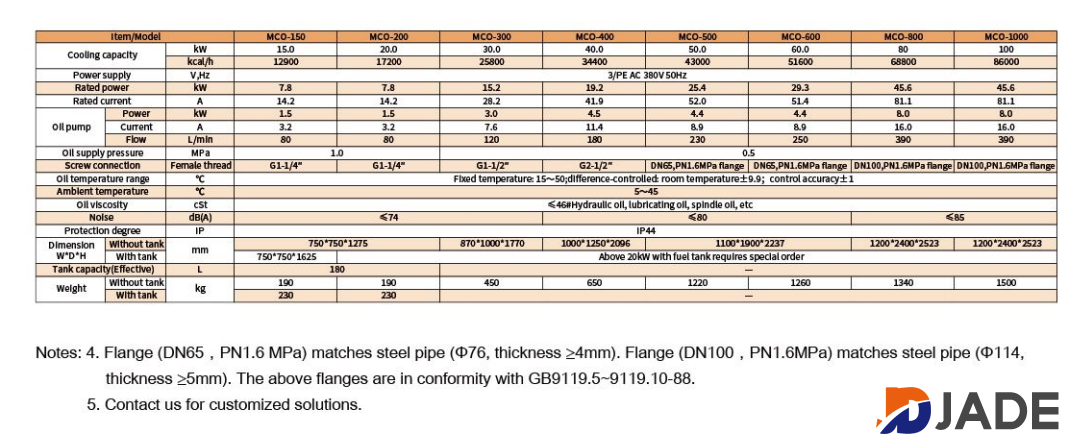

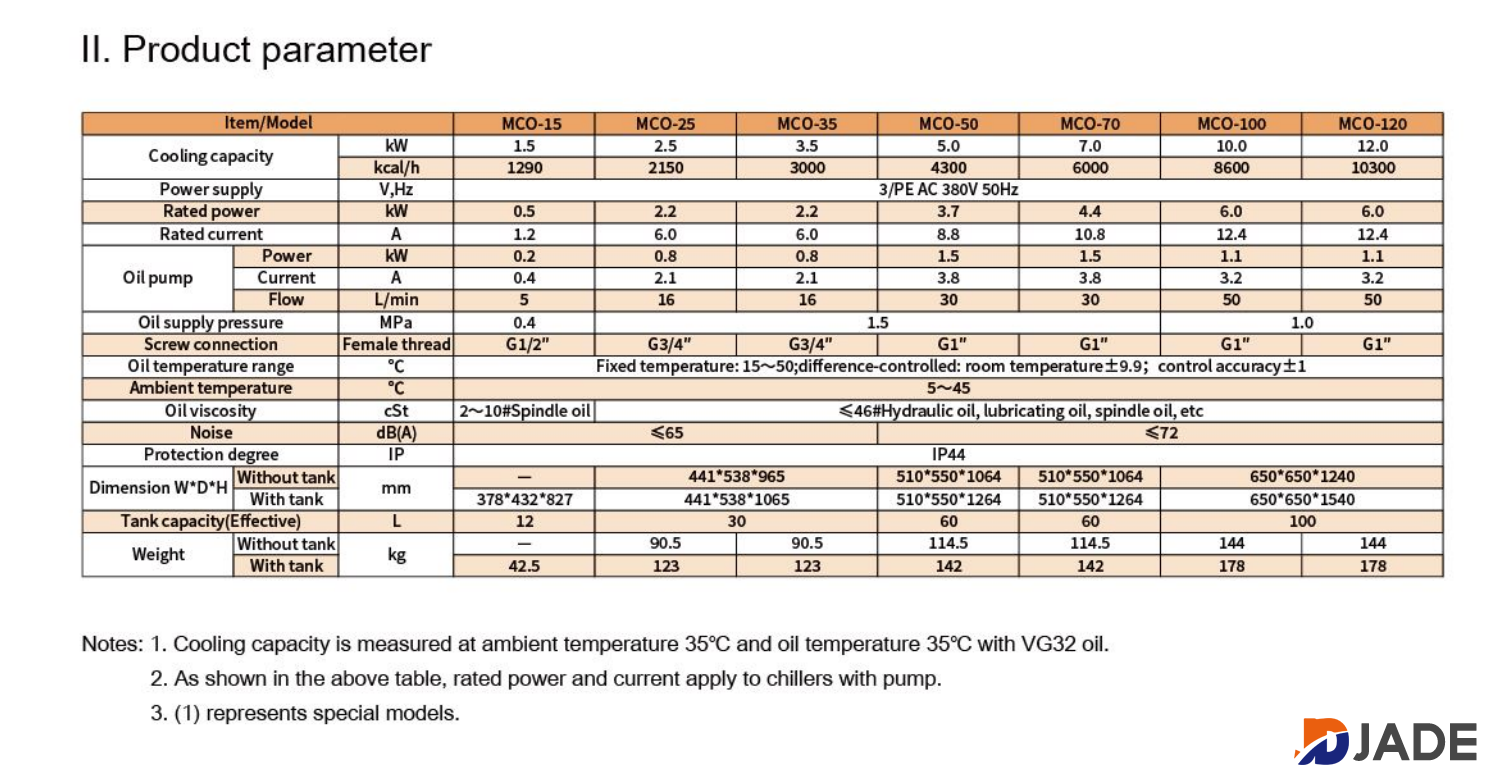

3 . Model Description
MCO - 25 C R - 01 KMZ - 3385
(1) Product series: MCO: Oil chiller
(2) Cooling capacity: (× 100W)
25: Cooling capacity = 25×100W=2500W
(3) Structure:
A: Without pump or tank (For hydraulic pump station cooling, the hydraulic
station needs a pump to continuously supply oil to the chiller)
B: With a pump but without tank (For hydraulic pump station or open system
cooling)
C: With a pump and tank (For closed system or spindle cooling)
D: With a tank and two pumps (For open reduction gearbox or gearbox
cooling)
(4) Additional functions:
R: With heating function (Without heating function, there is no "R".)
(5) Design serial number: there is a need for modification in case of great
structural changes,
01: General series number
(6) Special requirements: Be omitted for no special requirements
K: Special requirements for interface
M: Al labels and packing technical documents are written in English Z: High temperature environmentally friendly refrigerant
(7) Power supply:
The first digit: phase
The second/third digits: the first two figures of voltage
The forth digit: frequency 3385: 3/PE AC 380V 50Hz
