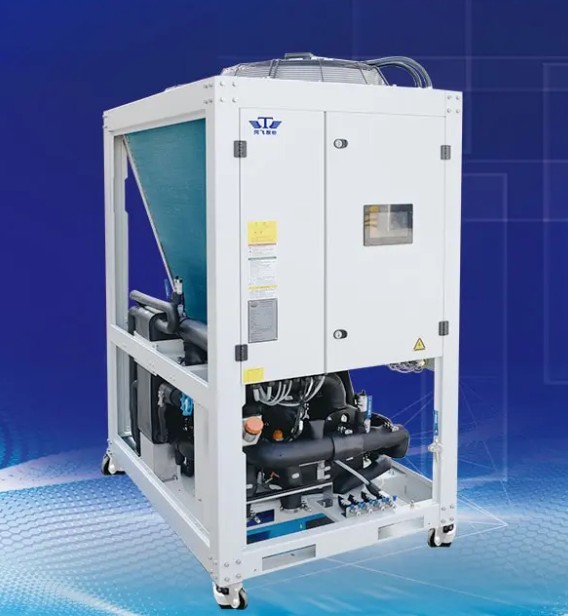

Inverter Liquid Cooling Unit (LCI)

Application industry: New energy storage industry

Scope of application:

It is suitable for large storage cabinets, and the storage power of the storage cabinets is about 3.5MW/h

Functional features:

The protection level of the whole unit is IP54, and the electrical box is IP56, with high protection level and high reliability;
The control system adopts capacitive touch screen Chinese/English bilingual conversion computer controller, CPU automatic control, can realize man-machine dialogue, simple and intuitive operation;
Water temperature control accuracy ±1℃; With automatic fault diagnosis function, the fault point is directly displayed on the screen, prompting the user to deal with it quickly;
Provide RS485 and CAN communication two communication interfaces, can realize the communication function with the host;
The unit can work stably in the ambient temperature range of -30℃-55℃, and provide stable and reliable temperature control capability for the battery energy storage system;
The inlet and outlet of the water is φ50.8 chuck, which can realize the rapid installation of the water system;
Adopt one fixed one variable double compressor system to achieve intelligent energy consumption regulation of the unit, with a large adjustment range and more accurate temperature control.
