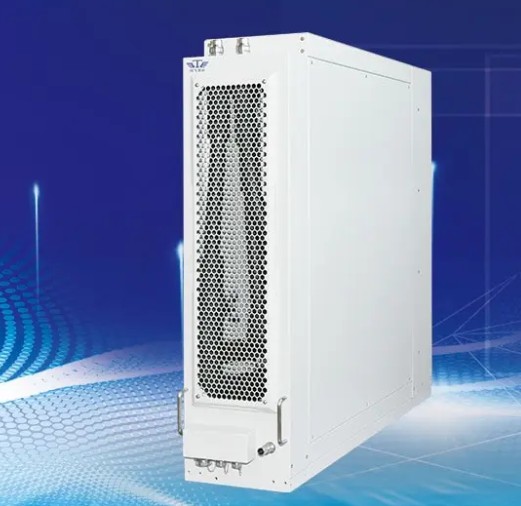

Inverter Liquid Cooling Unit (LCI)

Application industry: New energy storage industry

Scope of application:

It is suitable for industrial and commercial outdoor integrated energy storage cabinet, and the storage power of energy storage cabinet is 200kW/ H-372kW /h

Functional features:

The unit adopts automotive electronic shield water pump, with IP67 high protection grade and high reliability;

The control system adopts capacitive touch screen Chinese/English bilingual conversion computer controller, CPU automatic control, can realize man-machine dialogue, simple and intuitive operation;

Water temperature control accuracy ±1℃; With automatic fault diagnosis function, the fault point is directly displayed on the screen, prompting the user to deal with it quickly;

Provide RS485 and CAN communication two communication interfaces, can realize the communication function with the host;

The unit can work stably in the ambient temperature range of -30℃-55℃, and provide stable and reliable temperature control capability for the battery energy storage system;

Compact shape, light weight, flexible modular arrangement;

The water inlet and outlet are NW series quick plug joints, which can realize the quick installation of the water system;

Adopt high energy efficiency variable frequency compressor to achieve intelligent energy consumption regulation and more accurate temperature control;

The liquid cooling unit adopts two in and two out, which can cool the battery pack and water cooled PCS at the same time.
